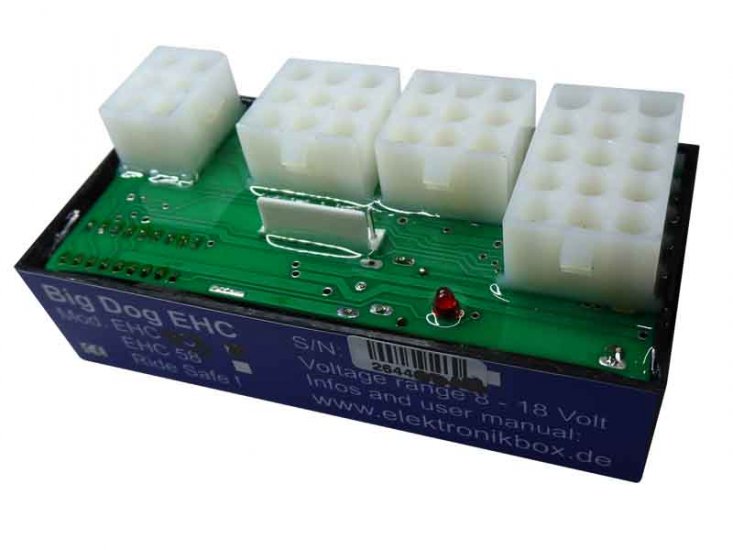

EHC for Big Dog 2003

This EHC replacement controls the functions of your Big Dog bike. Our EHC are made as factory unit plug ins.
An easy to install design prevents the need for rewiring.

The following functions are implemented:

- Flasher control
- Auto flasher off function, emergency flasher
- Control of low - and high beam.
- Control of ignition, starter and compression reliefs.
- Control of the horn
- Brake light control include dim function of the rear light


The most outputs of the EHC are short circuit protected and self resetting when a short circuit is not present anymore. However, we recommend to put a 20 amp fuse in the main line between the battery and the EHC (red cable at the 2004 model, connector A3 at the other models). High temperatures on the board due to a short circuit in the harness or somewhere else at the bike result in small gaps in the epoxy material what result that the EHC is not waterprooved anymore.
