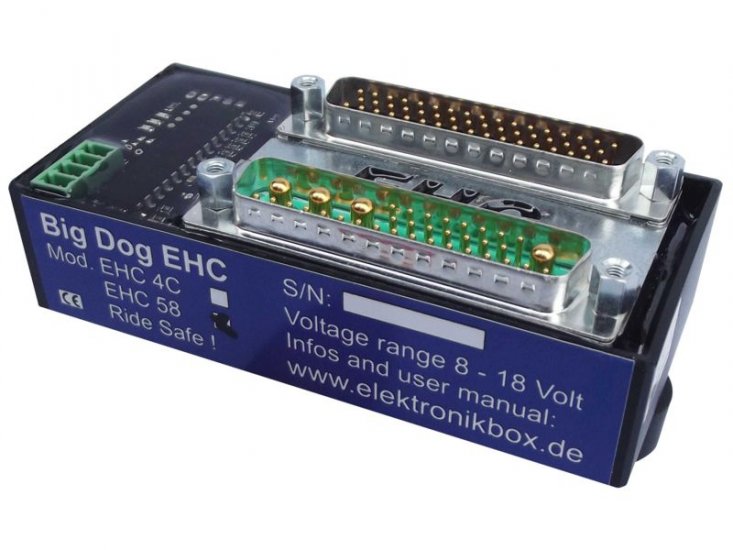

EHC for Big Dog 2005 - 2011

This EHC replacement controls the functions of your Big Dog bike. Our EHC are made as factory unit             plug-ins.

The easy installation design prevents the  need for rewiring your motorcycle.

The following functions are implemented:

- Flasher control
- Auto flasher off function, emergency flasher
- Control of low - and high beam.
- Control of ignition, starter and compression reliefs.
- Control of the horn
- Brake light control include dim function of the rear light
- 5 status led´s for the indication of the battery status, ignition and starter circuit.(EHC-58 )

The most outputs of the EHC are short circuit protected and self resetting when a short circuit is not present anymore. However, we recommend to put a 20 amp fuse in the main line between the battery and the EHC (red cable at the 2004 model, connector A3 at the other models). High temperatures on the board due to a short circuit in the harness or somewhere else at the bike result in small gaps in the epoxy material what result that the EHC is not waterproofed anymore.

Dimensions:                 104 mm x 50 mm x 24 mm

Power consumption:    About 80 uA in idle state
Box:                               ABS, potted with Epoxy 2k resin, water resist
Main voltages:              8 - 20 Volt

Connections:                1 - 2 x d-sub, 5 additional cables (EHC4)
Max. temperature:        70 degree Celsius

Max. main current:       20 Ampere for about 20 seconds, 7 Ampere continous
