Ross Cycle

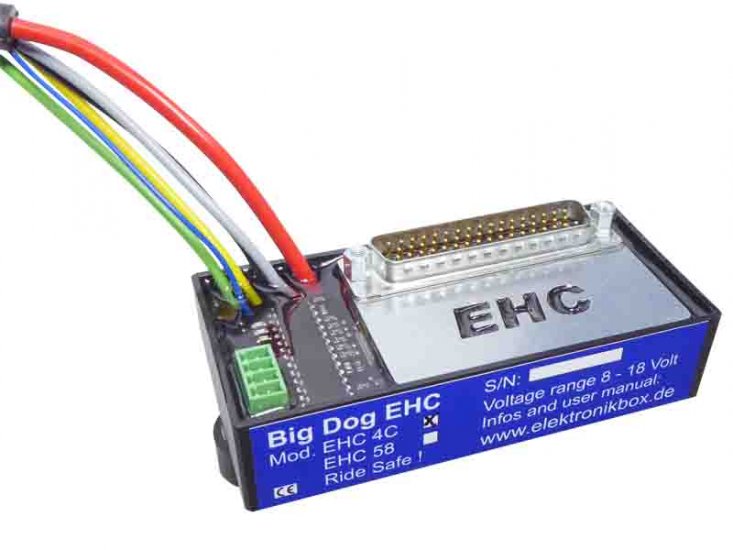

Big Dog EHC Model Year 2004
Big Dog EHC Model Year 2004
Regular price
$690.00 USD
Regular price
Sale price
$690.00 USD
Unit price
/
per
Couldn't load pickup availability
This EHC is a replacement for all 2004 models. These EHC's are factory unit plug-ins.
The easy installation design prevents the need for rewiring your motorcycle.
EHC controls the following
- Flasher control
- Auto flasher off function, emergency flasher
- Control of low - and high beam.
- Control of ignition, starter and compression reliefs.
- Control of the horn
- Brake light control include dim function of the rear light
| Dimensions: | 104 mm x 50 mm x 24 mm |
|---|---|
| Power consumption: | About 80 uA in idle state |
| Box: | ABS, potted with Epoxy 2k resin, water resist |
| Main voltages: | 8 - 20 Volt |
| Connections: | 1 - 2 x d-sub, 5 additional cables (EHC4) |
| Max. temperature: | 158 Degrees Fahrenheit |
| Max. main current: | 20 Ampere for about 20 seconds, 7 Ampere continous |
